GIACOMINI Roof Connection Model A97/ GIACOMINI 90-degree Connection Model A98
Two way male outlet size 4″x2.5″x2.5″ “straight body, cast brass, male NPT outlet.
Used as a standpipe roof outlet connection by the fire service. Provides 250 G.P.M. minimum per outlet.
Used with straight or angle hose valves to provide water control.

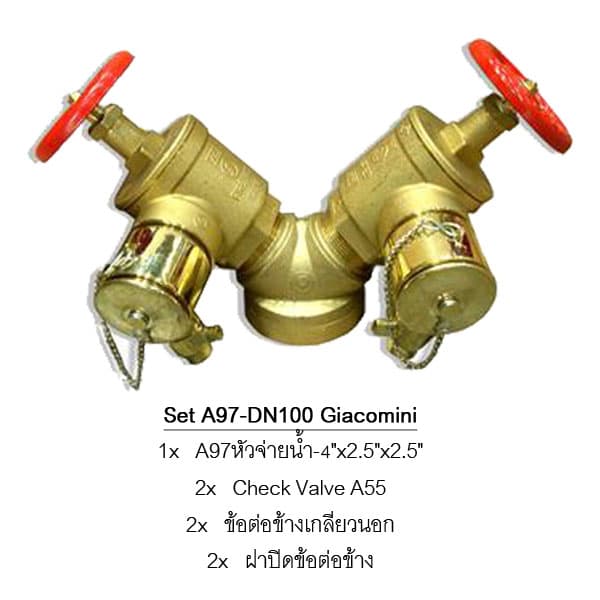

Standard equipment in 1 set:
1 ea x A97 – two way outlets – 4” inlet
Exposed Fire Department connections, two ways outlet, female NPT inlet and male NPT or male hose threaded outlets, straight connection. Used as roof fire Department outlet connection or as pump test connection, with main feature as following:
– Casted brass body
– 4” female NPT inlet
– two 2-1/2” male NPT or hose thread outlets
– Rated pressure 300 psi
2 ea x A55 Angle Valve, UL/FM, 300psi
2 ea x Fig.196B Brass Male NPT thread 2.5″ to Female Instantaneous 2.5″
2 ea x Plug01B Brass Male instantaneous Cap 2.5″
